Scheduled Message Consumer on ActiveMQ with Spring DMLC and Quartz

In this post I show how to schedule a task to start and stop a JMS MessageListener (Consumer) on ActiveMQ on a predefine date and time with Quartz Scheduler and Spring DefaultMessageListenerContainer (DMLC). From the other side (Producer) if you want to see how the delay and schedule message delivery works, I suggest the ActiveMQ scheduler built-in.

Stack

ActiveMQ 5.11.1
JDK 1.8
Maven 3.2
Spring 3.0.5.RELEASE
Quartz Scheduler 1.5.2

SOURCE CODE (/giuseu/activemq)

GIT
git clone https://gitlab.com/giuseppeurso-eu/activemq



Consumer

This is the MessageListener implementation. The onMessage() method is responsible for the consumption of messages. I create two methods startConsumption() and stopConsumption() to run start/stop on the DMLC Spring object. The instance of DMLC will be defined later via dependency-injection in the beans XML file.

public class Consumer implements MessageListener {
	private Object sampleListener;
	// setter injection via Spring...

	public void onMessage(Message message)
    {
	_log.info("Consuming message...");
       //something on message received here...
    }

	public void startConsumption(){
		_log.info("Starting the Consumer...");
		((DefaultMessageListenerContainer) getSampleListener()).start();
		_log.info("JOB STARTED!");
	}

	public void stopConsumption(){
		_log.debug("Stopping the Consumer... ");
		((DefaultMessageListenerContainer) getSampleListener()).stop();
		_log.info("JOB FINISHED!");
	}
}



Producer

A simple class which make use of Spring JmsTemplate to publish a number of messages. Destinations[ ] could be useful in case of sending on multiple queues.

public class Producer {

	private static JmsTemplate template;
	private Destination[] destinations;

	public void sendMessage(Message message) {
                try {
			Destination destination = destinations[0];
			template.convertAndSend(destination, message);
			_log.debug("Published message with JMS Correlation ID: "+message.getJMSCorrelationID()+" on queue: "+destination.toString());
		} catch (JMSException e) {
			_log.error(e);
		}

	}

}



Spring XML configuration

Here is the Spring beans definition.Pay attention to the autoStartup property which is false in the sampleDMLC bean. I will use the Quartz Scheduer to define two jobs which will be responsible for starting and stopping of the message consumer. In order to define the job details I use MethodInvokingJobDetailFactoryBean and SchedulerFactoryBean. The two jobs have a different targetMethod to start/stop message consumption but the same targetObject which refers to the same consumer. The consumer bean includes a property sampleListener injected via Spring which creates an instance of DMLC.

In this example, I use a simple cron expression to start message consumption in a given time and stop it after 15 seconds.

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

	<bean id="jmsConnectionFactory" class="org.apache.activemq.ActiveMQConnectionFactory">
		<property name="brokerURL" value="tcp://localhost:61616" />
		<property name="userName" value="amqsystem"/>
        <property name="password" value="12345"/>
        <!-- If you're using the embedded Broker uncomment this -->
        <!-- <property name="brokerURL" value="vm://localhost?broker.persistent=false" />-->
	</bean>

	<bean id="sampleDest" class="org.apache.activemq.command.ActiveMQQueue">
		<constructor-arg value="QUEUE.SAMPLE" />
	</bean>

	<!-- PRODUCER -->
	<bean id="jmsTemplate" class="org.springframework.jms.core.JmsTemplate">
		<property name="connectionFactory" ref="jmsConnectionFactory" />
	</bean>
	<bean id="producer" class="eu.giuseppeurso.activemq.scheduledconsumer.Producer">
		<property name="template" ref="jmsTemplate" />
		<property name="destinations">
			<list>
				<ref local="sampleDest" />
			</list>
		</property>
	</bean>

	<!-- CONSUMER -->
	<bean id="consumer" class="eu.giuseppeurso.activemq.scheduledconsumer.Consumer">
		<property name="sampleListener" ref="sampleDMLC" />
	</bean>
	<!-- Spring DMLC -->
	<bean id="sampleDMLC"
		class="org.springframework.jms.listener.DefaultMessageListenerContainer">
		<property name="connectionFactory" ref="jmsConnectionFactory" />
		<property name="destination" ref="sampleDest" />
		<property name="messageListener" ref="consumer" />
		<property name="autoStartup" value="false"/>
	</bean>

	<!-- QUARTZ SCHEDULER (Start Job) -->
	<bean id="jobConsumerStart" class="org.springframework.scheduling.quartz.MethodInvokingJobDetailFactoryBean">
		<property name="targetObject" ref="consumer" />
		<property name="targetMethod" value="startConsumption" />
	</bean>
	<bean id="cronConsumerStart" class="org.springframework.scheduling.quartz.CronTriggerBean">
		<property name="jobDetail" ref="jobConsumerStart" />
		<property name="cronExpression" value="10 49 19 * * ?" />
	</bean>
	<!-- QUARTZ SCHEDULER (Stop Job) -->
	<bean id="jobConsumerStop" class="org.springframework.scheduling.quartz.MethodInvokingJobDetailFactoryBean">
		<property name="targetObject" ref="consumer" />
		<property name="targetMethod" value="stopConsumption" />
	</bean>
	<bean id="cronConsumerStop" class="org.springframework.scheduling.quartz.CronTriggerBean">
		<property name="jobDetail" ref="jobConsumerStop" />
		<property name="cronExpression" value="15 49 19 * * ?" />
	</bean>

	<!-- TRIGGERs -->
	<bean class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
		<property name="triggers">
			<list>
				<ref bean="cronConsumerStart" />
				<ref bean="cronConsumerStop" />
			</list>
		</property>
	</bean>

</beans>



Run Test

Finally a simple JUnit test class ScheduledConsumerTest, to simulate a use case. This class sends a message on a sample queue and waits until 20 seconds with a Thread.sleep for the job executions.

public class ScheduledConsumerTest extends TestCase {
//something here ...
public void testScheduledConsumer() throws JMSException, InterruptedException {
		Session session = producer.getTemplate().getConnectionFactory().createConnection().createSession(false, Session.AUTO_ACKNOWLEDGE);
		TextMessage txtMessage = session.createTextMessage();

		txtMessage.setText("This is a text message!");
		producer.sendMessage(txtMessage);
		//Waiting a few seconds until the scheduler start/stop
		Thread.sleep(20000);
	}
}
### Run Maven to compile source and execute test
###
$ cd activemq-samples/spring-scheduled-consumer
$ mvn clean install

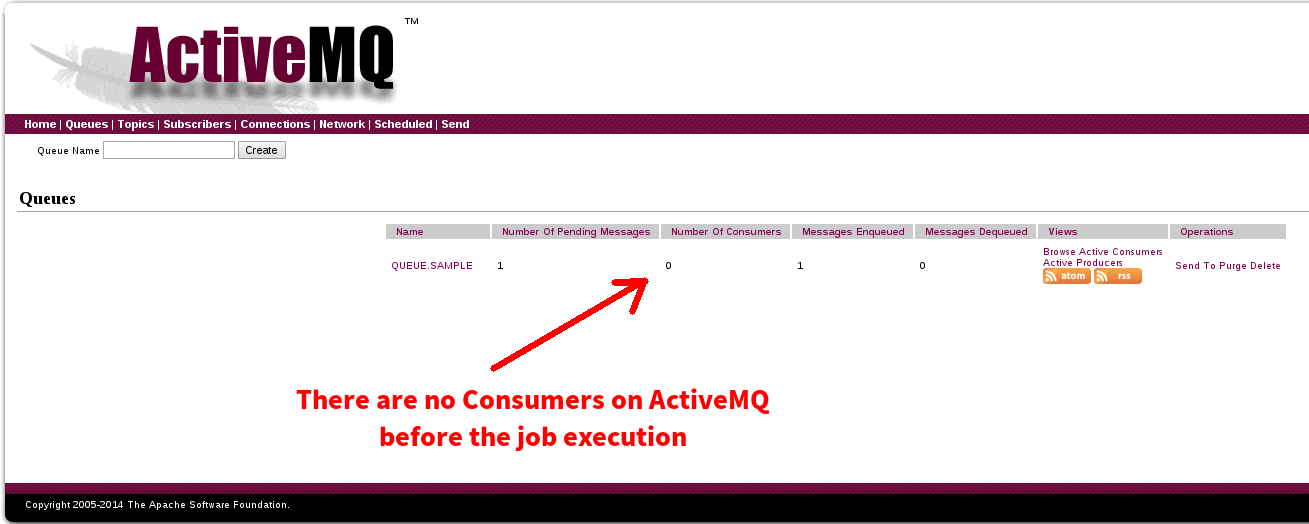

giuseppe-urso-activemq-scheduled-message-consumer-01

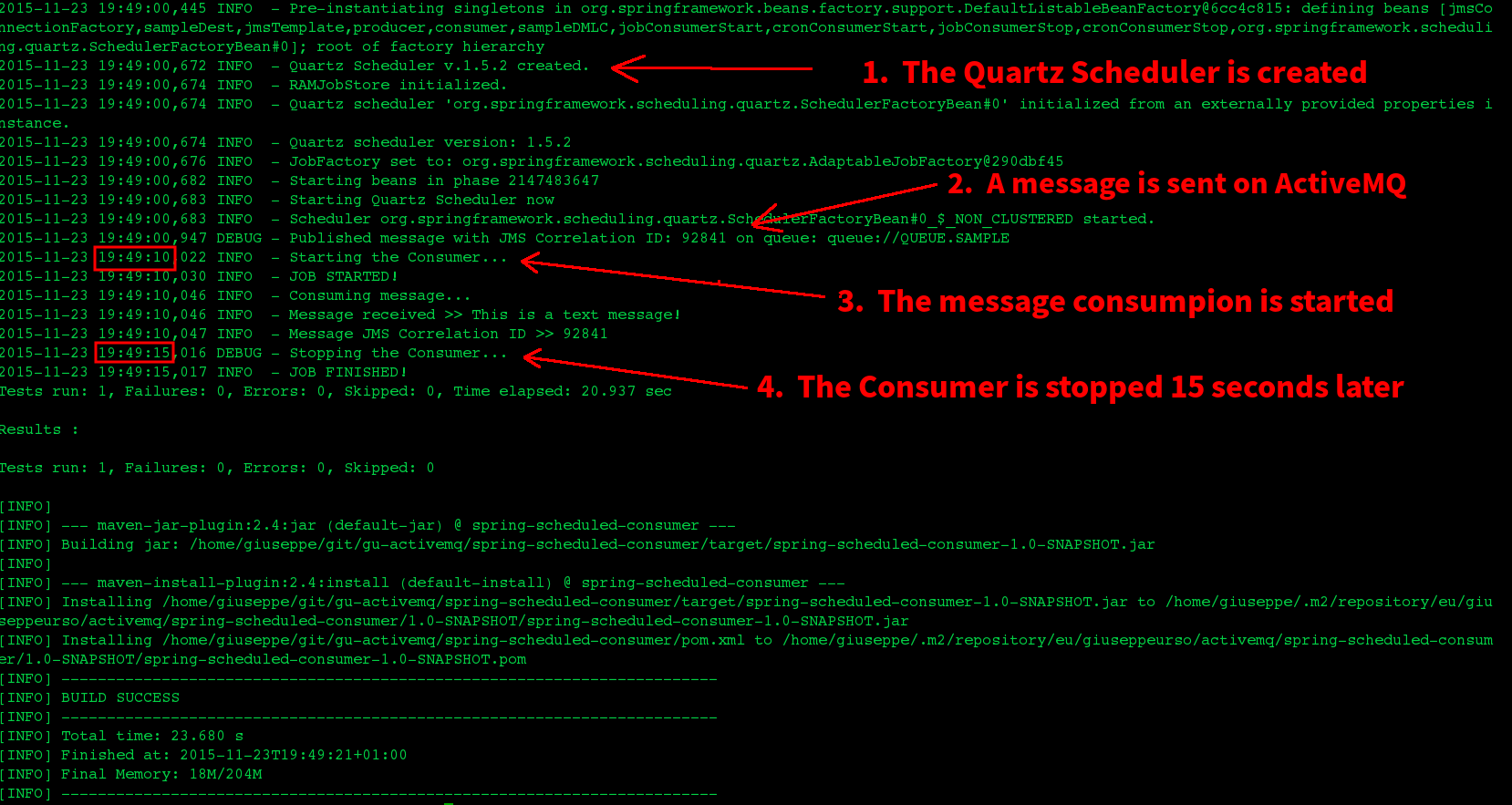

giuseppe-urso-activemq-scheduled-message-consumer-02
