September 18, 2019

Alfresco LDAP integration – Two examples Netscape DS and Active Directory

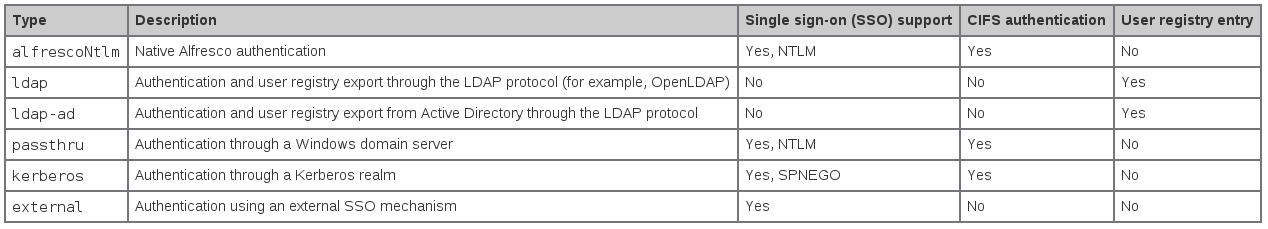

The Alfresco Authentication Chain supports multiple alternative implementations of authentication subsystem, each designed to work with one of the different types of back-end authentication systems like AD, LDAP, Kerberos, alfrescoNtlm (default in the built-in auth) or other external servers. The Alfresco official wiki shows the following table with the list of the authentication subsystem types supplied with Alfresco.

giuseppe-urso-alfresco-ldap-00
In this post I show how to integrate Alfresco with the two LDAP subsystems, OpenLDAP and Active Directory. More info about the Alfresco Authentication Susbsystems can be found here.



EXAMPLE 1. – Subsystem ldap, integration with Netscape Directory Server (NDS)

In this example I use a rebuild of Netscape Directory Server (NDS) called CentOS Directory Server, a LDAP solution for CentOS Linux server distributions. Other LDAP systems coming from NDS are: Red Hat Directory Server, Fedora 389 Directory Server, Sun One Directory Server. To test and better manipulate ldap users, I use JXplorer, a open source ldap client written in java. Here the application stack.

Alfresco: Community 4.0.e
LDAP Server: CentOS Directory Server 8.2
LDAP Client: JXplorer 3.3

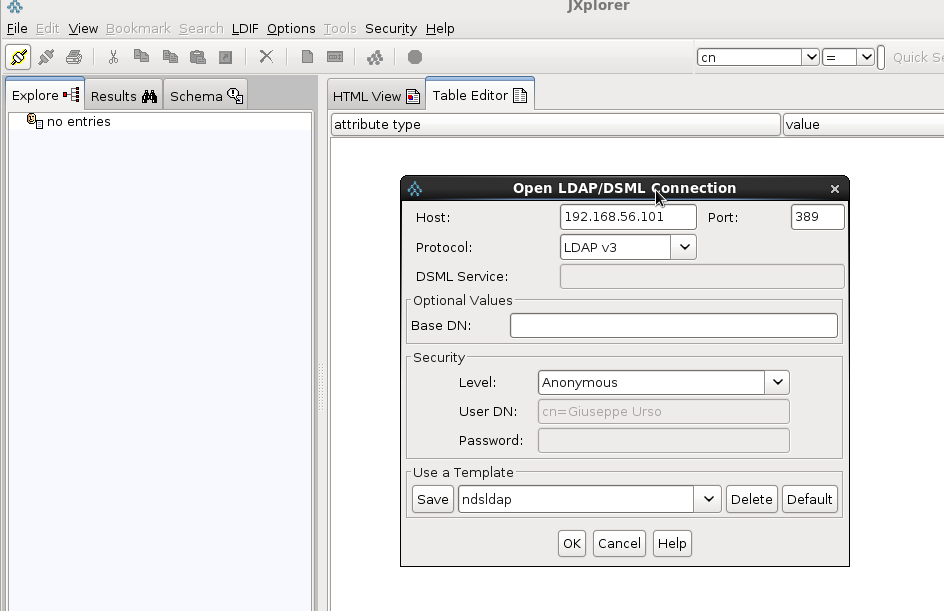

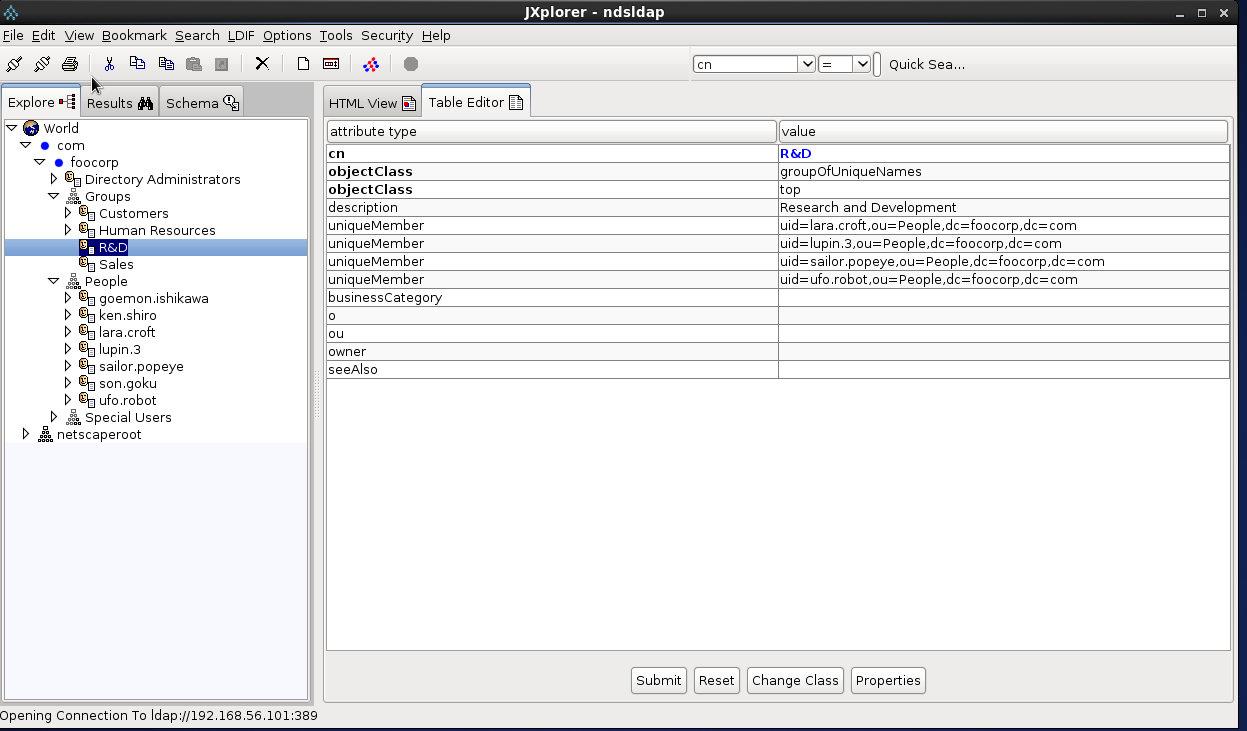

The first operation to do is a test of ldap connection using the anonymous access against the ldap server CentOS-DS (LDAPv3).

 giuseppe-urso-alfresco-ldap-01

giuseppe-urso-alfresco-ldap-02

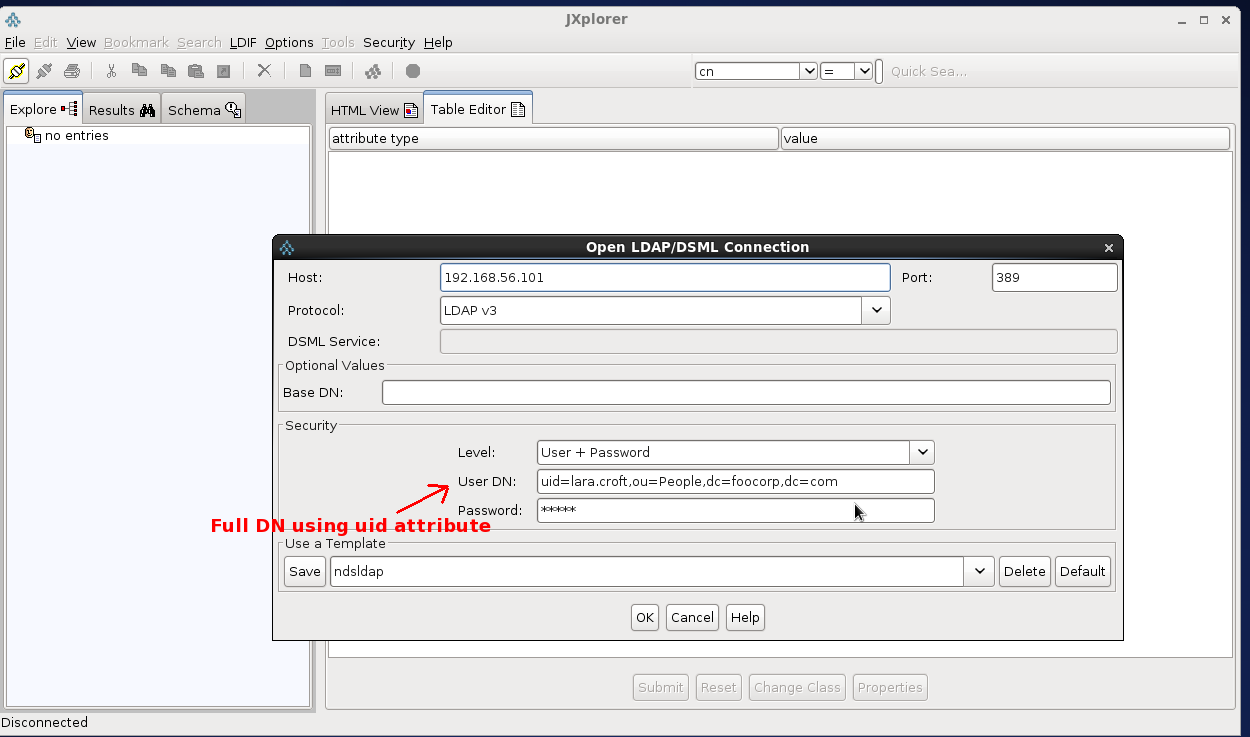

Furthermore we can test ldap authentication using the credentials of a user. Use the full Distinguished Name (DN) in the BIND request, here two examples:

DN: cn=Lara Croft,ou=People,dc=foocorp,dc=com
DN: uid=lara.croft,ou=People,dc=foocorp,dc=com

Pay attention to the attributes cn and uid in the DN. The exact DN expression is very important in order to correctly set ldap.authentication.userNameFormat, the Alfresco property that specifies how to map the user identifier entered by the user in the login.

giuseppe-urso-alfresco-ldap-03

Here the ldif format for LDAP Users and Groups in this example.

– LDAP USER

DN: uid=lara.croft,ou=People,dc=foocorp,dc=com
objectClass: person
objectClass: top
objectClass: inetOrgPerson
objectClass: organizationalPerson
cn: Lara Croft
givenName: Lara
sn: Croft
uid: lara.croft



– LDAP GROUP

DN: cn=R&D,ou=Groups,dc=foocorp,dc=com
objectClass: groupOfUniqueNames
objectClass: top
cn: R&D
description: Research and Development
uniqueMember: uid=lara.croft,ou=People,dc=foocorp,dc=com
uniqueMember: uid=sailor.popeye,ou=People,dc=foocorp,dc=com
uniqueMember: uid=ufo.robot,ou=People,dc=foocorp,dc=com
uniqueMember: uid=lupin.3,ou=People,dc=foocorp,dc=com

In this example I also configure the LDAP syncronization mechanism based on the Alfresco “user registry export” service. Here the four steps to integrate Alfresco with Centos-DS LDAP server (authentication and syncronization).

1. Create the properties files to configure myldap instance

$ mkdir {ALFRESCO_HOME}/shared/classes/alfresco/extension/subsystems/Authentication/myldap
$ cd {ALFRESCO_HOME}/tomcat/webapps/alfresco/WEB-INF/classes/alfresco/subsystems/Authentication/
$ cp  ./ldap/*.properties {ALFRESCO_HOME}/shared/classes/alfresco/extension/subsystems/Authentication/ldap/myldap



2. Edit the file ldap-authentication.properties to define myldap set up

ldap.authentication.active=true
# Full DN format to login
ldap.authentication.userNameFormat=uid=%s,ou=People,dc=foocorp,dc=com
ldap.authentication.java.naming.provider.url=ldap://192.168.56.101:389

ldap.synchronization.active=true
# Anonymous access for sync
ldap.synchronization.java.naming.security.authentication=none

ldap.synchronization.groupQuery=(objectclass\=groupOfUniqueNames)
ldap.synchronization.groupDifferentialQuery=(&(objectclass\=groupOfUniqueNames)(!(modifyTimestamp<\={0})))

ldap.synchronization.personQuery=(objectclass\=inetOrgPerson)
ldap.synchronization.personDifferentialQuery=(&(objectclass\=inetOrgPerson)(!(modifyTimestamp<\={0})))

ldap.synchronization.groupSearchBase=ou\=Groups,dc\=foocorp,dc\=com
ldap.synchronization.userSearchBase=ou\=People,dc\=foocorp,dc\=com

ldap.synchronization.userIdAttributeName=uid
ldap.synchronization.userFirstNameAttributeName=givenName
ldap.synchronization.userLastNameAttributeName=sn
ldap.synchronization.userEmailAttributeName=mail
ldap.synchronization.userOrganizationalIdAttributeName=o
ldap.synchronization.defaultHomeFolderProvider=largeHomeFolderProvider

ldap.synchronization.groupIdAttributeName=cn
ldap.synchronization.groupDisplayNameAttributeName=description
ldap.synchronization.groupType=groupOfUniqueNames
ldap.synchronization.personType=inetOrgPerson
ldap.synchronization.groupMemberAttributeName=uniqueMember



3. Add the following properties to the alfresco-global.properties file

# LDAP
authentication.chain=alfrescoNtlm1:alfrescoNtlm,myldap:ldap
synchronization.sinchronyzeChangesOnly=false
synchronization.syncWhenMissingPeopleLogIn=true
synchronization.syncOnStartup=true
synchronization.import.cron=0 0 18 * * ?



4. Optionally enable debugging in the log4j.properties file

#LDAP
log4j.logger.org.alfresco.repo.importer.ImporterJob=debug
log4j.logger.org.alfresco.repo.importer.ExportSourceImporter=debug
log4j.logger.org.alfresco.repo.security.authentication.ldap=debug
log4j.logger.org.alfresco.repo.security.sync=debug
#log4j.logger.org.alfresco.repo.security.sync=info

Follows the user name format I set in Alfresco:

ldap.authentication.userNameFormat=uid=%s,ou=People,dc=foocorp,dc=com

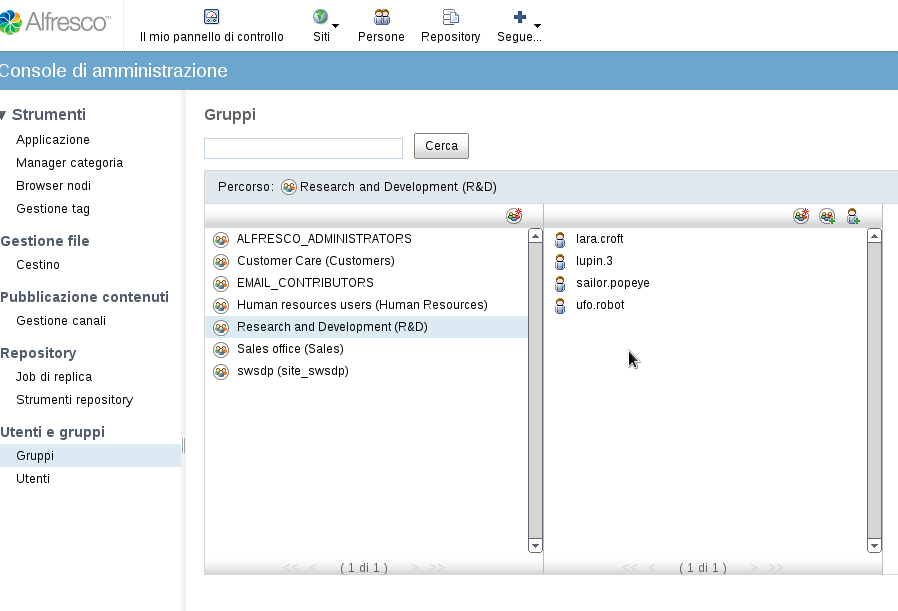

If no errors occurs you will get the following log messages on Alfresco bootstrap (synchronization.syncOnStartup=true).

giuseppe-urso-alfresco-ldap-04

giuseppe-urso-alfresco-ldap-05

giuseppe-urso-alfresco-ldap-06

EXAMPLE 2. – Subsystem ldap-ad, integration with  Microsoft Active Directory

In this example I integrate Alfresco and Microsoft Acrive Directroy. I use a test environment where a instance of  Microsoft Active Directory Server 2003 is running. Here the application stack.

Alfresco: Community 4.0.e
LDAP Server: Microsoft Active Directory 2003
LDAP Client: JXplorer 3.3

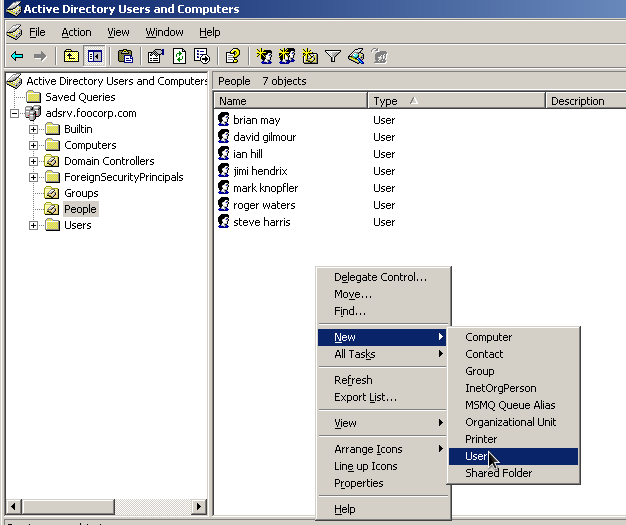

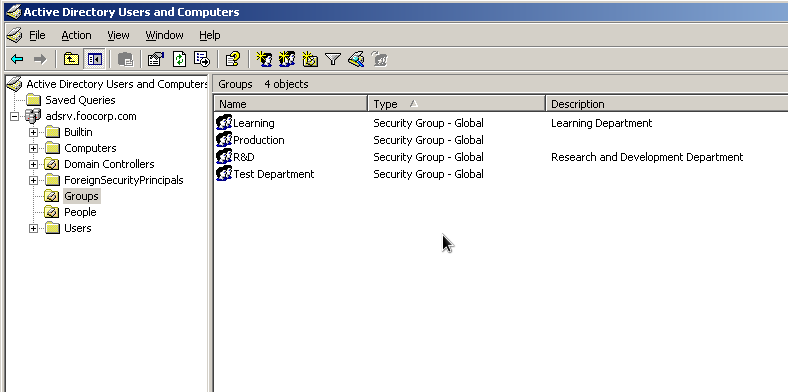

I create the two Organiztional Units Groups and People for groups and users.

giuseppe-urso-alfresco-ldap-07

giuseppe-urso-alfresco-ldap-08

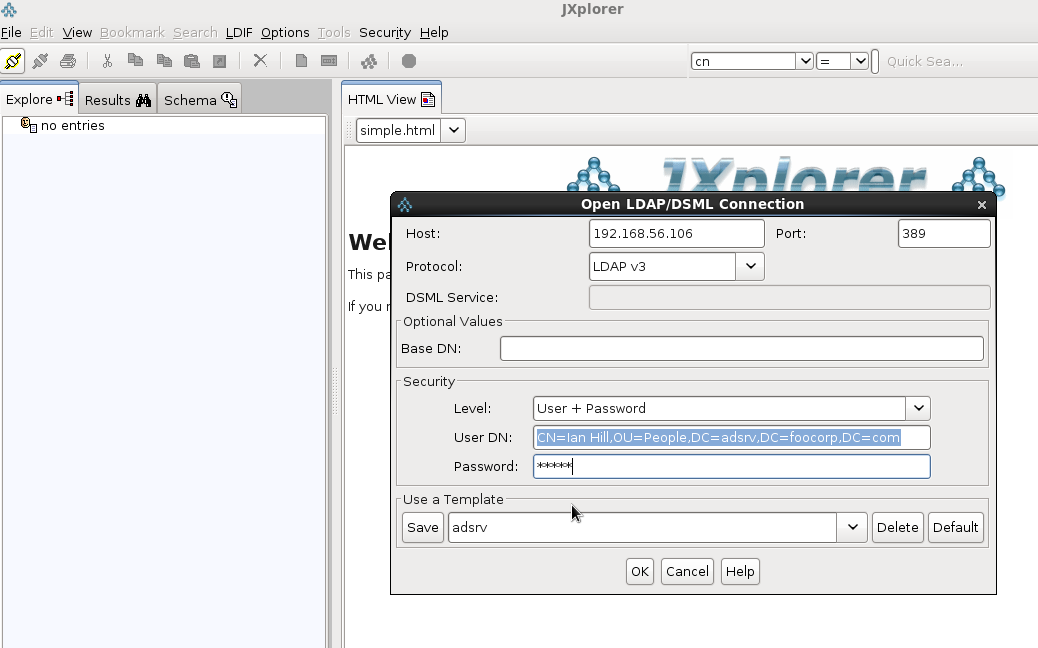

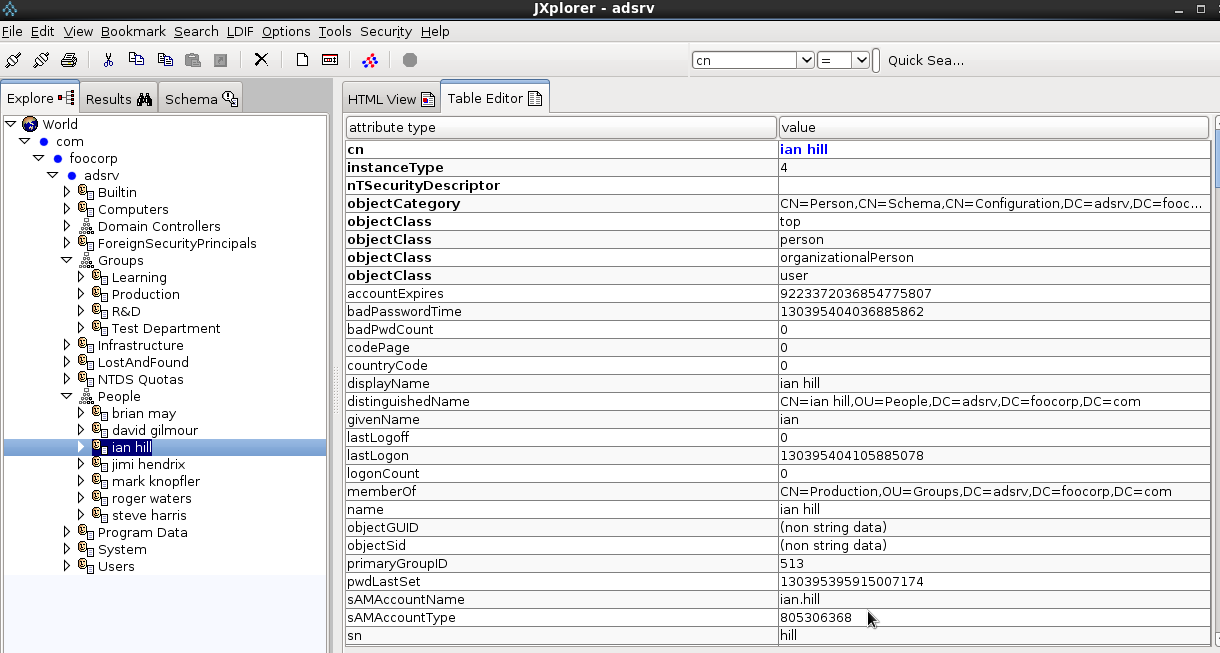

Use JXplorer to test the ldap connection and authentication. Insert the full Distinguished Name (DN) in the BIND request. In this case I use the cn attribute in the full DN:

DN: CN=ian hill,OU=People,DC=adsrv,DC=foocorp,DC=com



giuseppe-urso-alfresco-ldap-09

giuseppe-urso-alfresco-ldap-10

Follows the ldif format for LDAP Users and Groups in this example.

– LDAP-AD Group

DN: CN=R&D,OU=Groups,DC=adsrv,DC=foocorp,DC=com
objectClass: top
objectClass: group
cn: R&D
description: Research and Development Department
distinguishedName: CN=R&D,OU=Groups,DC=adsrv,DC=foocorp,DC=com
groupType: -2147483646
instanceType: 4
member: CN=steve harris,OU=People,DC=adsrv,DC=foocorp,DC=com
member: CN=jimi hendrix,OU=People,DC=adsrv,DC=foocorp,DC=com
name: R&D
objectCategory: CN=Group,CN=Schema,CN=Configuration,DC=adsrv,DC=foocorp,DC=com
objectGUID:: RmNuVu+/ve+/vSxJ77+9RUt0Xkfvv70Y
objectSid:: AQUAAAAAAAUVAAAA77+977+9be+/ve+/vTnvv71xS++/ve+/vQZUBAAA
sAMAccountName: R&D
sAMAccountType: 268435456

– LDAP-AD User

DN: CN=brian may,OU=People,DC=adsrv,DC=foocorp,DC=com
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: user
accountExpires: 9223372036854775807
cn: brian may
displayName: brian may
distinguishedName: CN=brian may,OU=People,DC=adsrv,DC=foocorp,DC=com
givenName: brian
memberOf: CN=Production,OU=Groups,DC=adsrv,DC=foocorp,DC=com
name: brian may
objectCategory: CN=Person,CN=Schema,CN=Configuration,DC=adsrv,DC=foocorp,DC=com
sAMAccountName: brian.may
sAMAccountType: 805306368
sn: may
userAccountControl: 512
userPrincipalName: brian.may@adsrv.foocorp.com

For the user name format in Alfresco I use the following expression:

sAMAccountName@adsrv.foocorp.com

Here the four steps to integrate Alfresco with Microsoft Active Directory server (authentication and syncronization).

1. Create the properties files to configure myldap instance

$ mkdir {ALFRESCO_HOME}/shared/classes/alfresco/extension/subsystems/Authentication/ldap-ad/myldap
$ cd {ALFRESCO_HOME}/tomcat/webapps/alfresco/WEB-INF/classes/alfresco/subsystems/Authentication/
$ cp  ./ldap-ad/*.properties {ALFRESCO_HOME}/shared/classes/alfresco/extension/subsystems/Authentication/ldap-ad/myldap

2. Edit the file ldap-authentication.properties to define myldap set up

ldap.authentication.active=true
ldap.authentication.userNameFormat=%s@adsrv.foocorp.it
ldap.authentication.java.naming.factory.initial=com.sun.jndi.ldap.LdapCtxFactory
ldap.authentication.java.naming.provider.url=ldap://192.168.56.106:389

ldap.synchronization.active=true
ldap.synchronization.java.naming.security.authentication=simple
ldap.synchronization.java.naming.security.principal=ian.hill@adsrv.foocorp.it
ldap.synchronization.java.naming.security.credentials=12345

ldap.synchronization.groupQuery=(objectclass\=*)
ldap.synchronization.groupDifferentialQuery=(objectclass\=*)

ldap.synchronization.personQuery=(objectclass\=*)
ldap.synchronization.personDifferentialQuery=(objectclass\=*)

ldap.synchronization.groupSearchBase=ou\=Groups,dc\=adsrv,dc\=foocorp,dc\=com
ldap.synchronization.userSearchBase=ou\=People,dc\=adsrv,dc\=foocorp,dc\=com

ldap.synchronization.modifyTimestampAttributeName=modifyTimestamp
ldap.synchronization.timestampFormat=yyyyMMddHHmmss'.0Z'

ldap.synchronization.userIdAttributeName=sAMAccountName
ldap.synchronization.userFirstNameAttributeName=givenName
ldap.synchronization.userLastNameAttributeName=sn
ldap.synchronization.userEmailAttributeName=mail
ldap.synchronization.userOrganizationalIdAttributeName=company
ldap.synchronization.defaultHomeFolderProvider=largeHomeFolderProvider

ldap.synchronization.groupIdAttributeName=cn
ldap.synchronization.groupDisplayNameAttributeName=displayName
ldap.synchronization.groupType=group
ldap.synchronization.personType=user
ldap.synchronization.groupMemberAttributeName=member
ldap.synchronization.enableProgressEstimation=true

3. Add the following properties to the alfresco-global.properties file

# LDAP
authentication.chain=alfrescoNtlm1:alfrescoNtlm,myldap:ldap-ad
synchronization.sinchronyzeChangesOnly=true
synchronization.syncWhenMissingPeopleLogIn=true
synchronization.syncOnStartup=true
synchronization.import.cron=0 0 18 * * ?

4. Optionally enable debugging in the log4j.properties file

#LDAP
log4j.logger.org.alfresco.repo.importer.ImporterJob=debug
log4j.logger.org.alfresco.repo.importer.ExportSourceImporter=debug
log4j.logger.org.alfresco.repo.security.authentication.ldap=debug
log4j.logger.org.alfresco.repo.security.sync=debug
#log4j.logger.org.alfresco.repo.security.sync=info

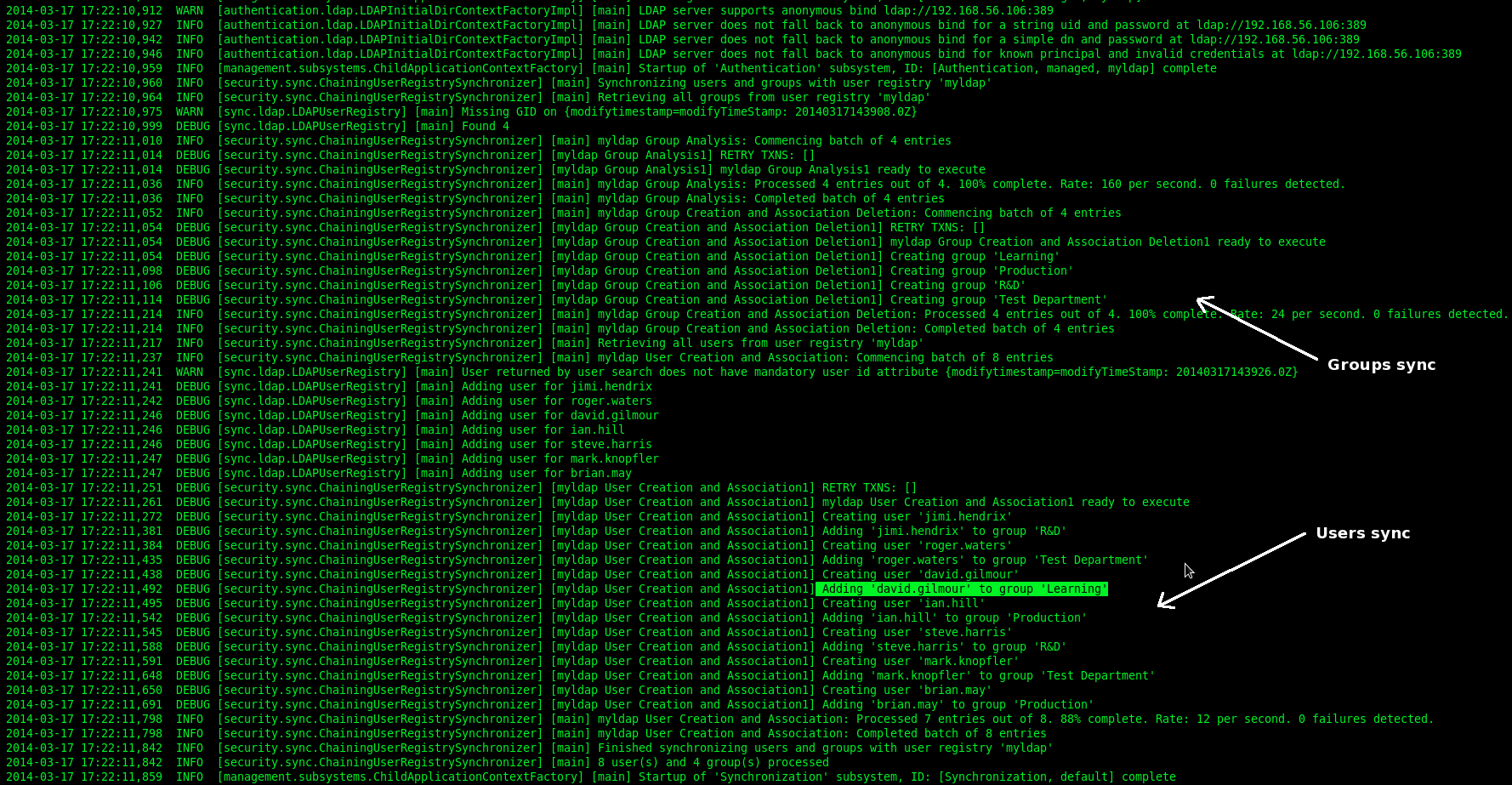

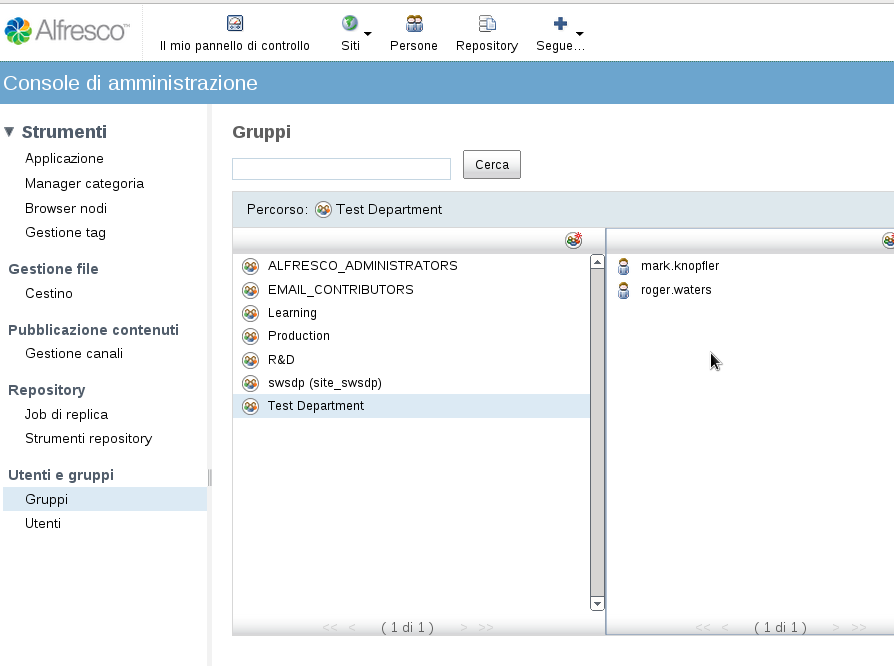

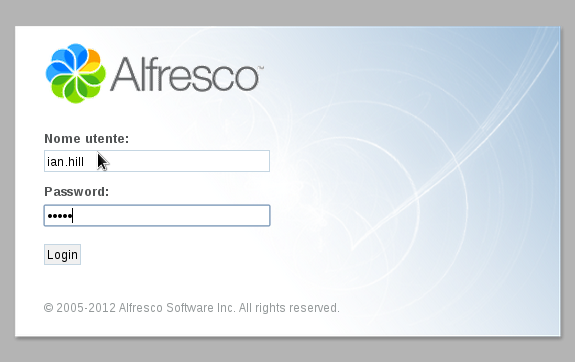

giuseppe-urso-alfresco-ldap-11

giuseppe-urso-alfresco-ldap-12

giuseppe-urso-alfresco-ldap-13
